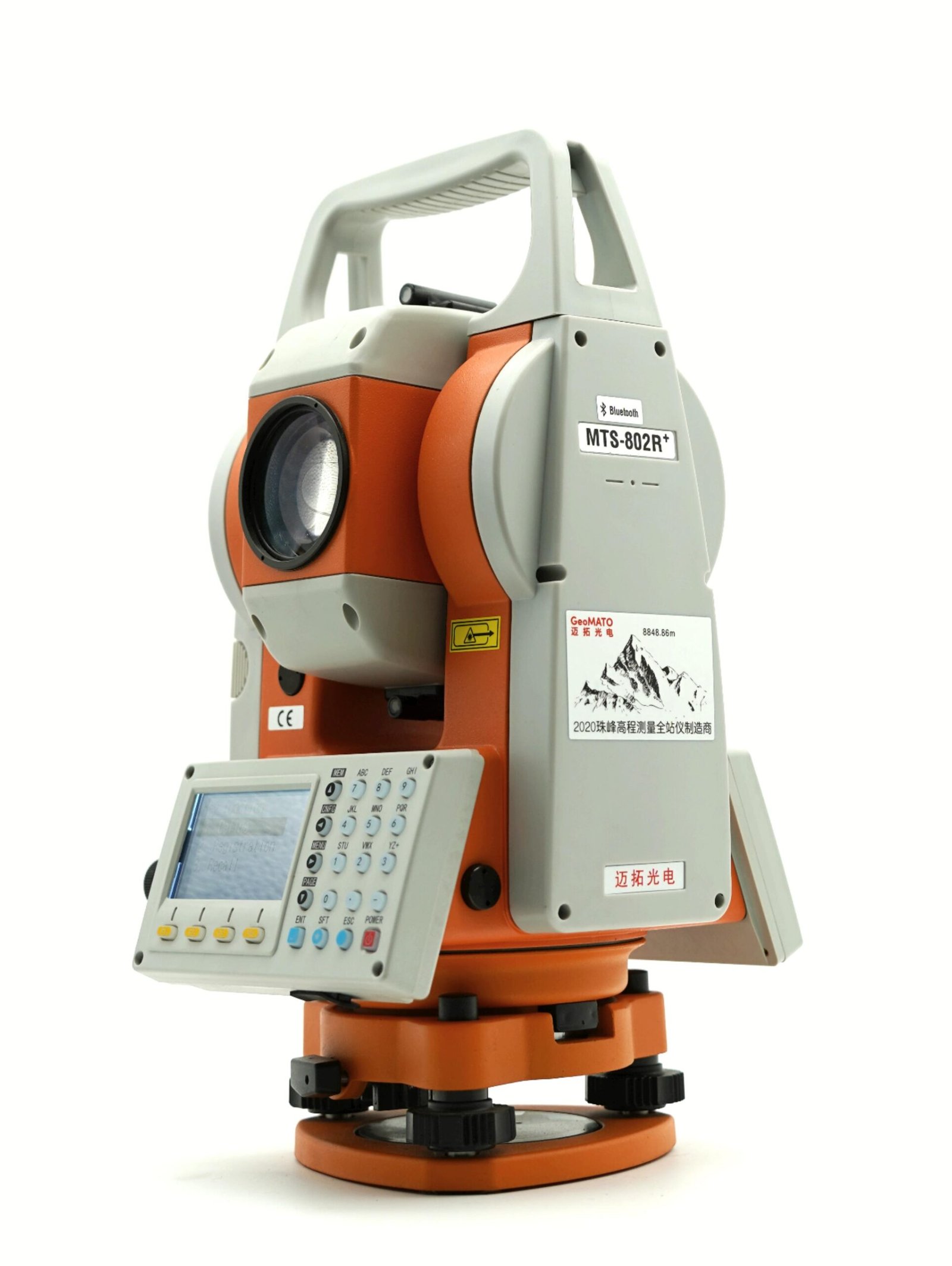

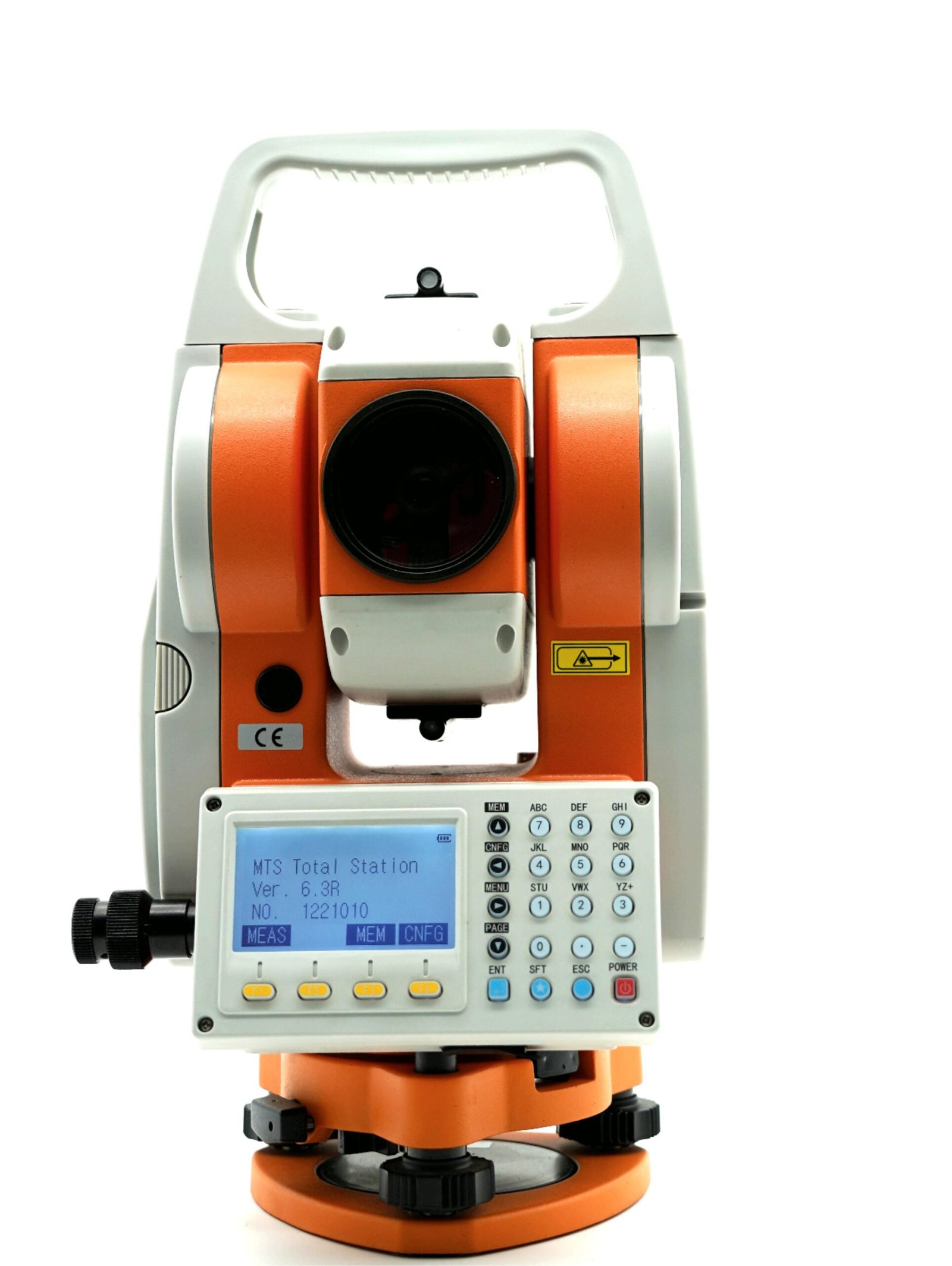

802R

Telescope

Aperture:                                                          45mm

Magnification:                                                  30×

Image:                                                              Erect

Field of view:                                                    1°30′

Minimum focus:                                               1.5m

Reticle illumination:                                            Provided

Distance  Measurement

Measuring range  (in good atmospheric conditions)

Without prism   (Standard whiteboard：White face，Standard A4 paper)

MTS-802R —-600m

MTS-802R+—-1000m

Single prism:(in good weather condition)

MTS802R  —  5.0km

MTS802R+  — 7.5 km

Accuracy :

Prism mode                   ±(2mm+2ppm·D)

Without prism mode            ±(5mm+3ppm·D)

Minimum display:

Measuring time：

Fine measurement (repeat)：                  about 1.0sec (first time 2sec.)

Coarse measurement (repeat):                 about 0.7sec (first time 2sec.)

Tracking measurement:                     about 0.3 sec (first time 1.5sec.)

Atmospheric correction:                       -499ppm~+499ppm(step1ppm)

Target constant correction:                      -99mm~+99mm ( step1 ppm)
